E36 Chassis Harness
E36 Chassis Harness
Introducing our game changing "E36 Chassis Harness"!! Plugs into your important basic FACTORY BMW plugs. Available with the X20 connector, bottom half!! (body side)

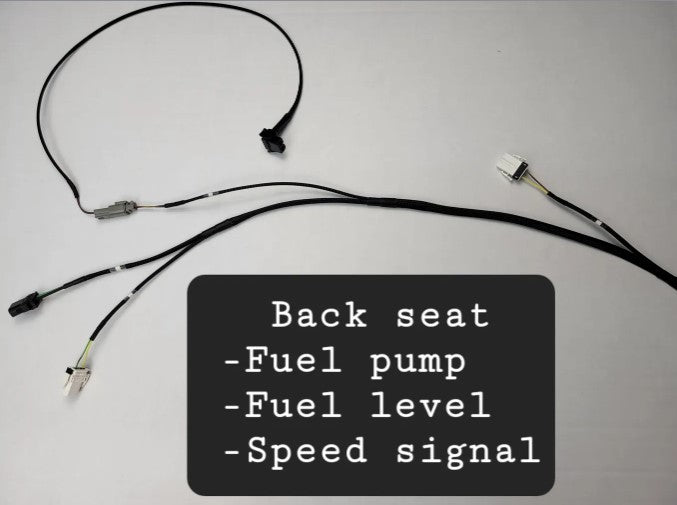

Chassis Harness has the plug and play harness you're looking for! With all brand new genuine BMW connectors, Terminals, and TXL wire. Built in three easy to install sections. Front, the main, and the rear. Cluster functions, working brake lights, blinkers, hazards, headlights, and high beams.
Below is a list of functionality.
- Blinkers utilize the BMW OEM switch on the steering column.
- Hazards work off the OEM BMW button
- Left, right, and 3rd brake light. Plugs into your E36 OEM brake pedal
- Reverse lights, left as a flying lead. Send 13.8v (+) power to this wire. To activate the reverse lights
- Headlight switch which activates the vehicles running lights, and headlights.
- High beams work off the factory blinker switch
- Speed signal from the differential, to the BMW OEM 6 cylinder cluster
- OEM Fuel pump housing connectors
- Fuel level sender, works the OEM BMW cluster gas gauge.
- Functional cluster- fuel level, speed, tach, OEM BMW I6 coolant temperature sensor specifically, CEL, battery light, and oil light functions.
- Fully functional tumbler, using your OEM key.
When you remove your old factory harness, do not throw it away, JUST YET!!
This is a basic function Chassis Harness. This product is NOT a full OEM replacement. We power up the important functions, listed below.
- Corner lights
- Blinker lights
- Head lights
- High beams
- Cluster
- Blinker / headlight stalk
- Tumbler
- Brake pedal
- Fuel pump connector
- Fuel level
- License plate lights
- 3rd brake light
- Tail lights
-Reverse lights
ALL PLUG AND PLAY!!!!! With additional inputs, and outputs located in the passenger side kick area for - battery constant, ignition on, running lights, and reverse. With additional options available.
For a additional fee, we can can also wire
- 2 or 4 electric windows
- An extra relay. Depending on your build requirements.
We do not wire the engine harnesses, A.C, wiper, fans, radio, speakers, sunroof, heater, defrost, cruise control, or power locks. This is a basic function harness. We can leave extra 12g flying leads, from a 30 amp fuse, and relay. You can use these to power addition functions. Like a radio, or wiper. Ask us about it.
We can how ever leave a 12g flying lead(s). Receiving power from either ignition on, or a switch (depending on your build requirements) To activate extra circuits. For example, you could use it to power up a radio, wiper or cig lighter, radar, after market heater box, underglow, ect. We only supply the power. (NOT FOR FANS. Will void warranty)
Out of Country sales are not available at this time.
The turn around time is about 2-5 weeks. Subject to change with out notice.
A refund can be issued, up until we begin building your custom E36 Chassis Harness. A E36 Chassis Harness refund, is subject to a 15% processing fee.
Ordering Questionnaire:
Which E36 Chassis is this for? Coupe, Sedan, Convertible, Wagon, Ti
Would you like to use the factory X20 connector? If yes, +$85
Headlight switch? OEM or Switch panel
OEM Key Tumbler or switch panel?
OEM blinker stalk or switch panel (+$25)?
Digital dash or OEM cluster (+$100)?
OEM wipers? Only one speed, Activated off switch panel (+$75)
Power window harnesses? Coupe +$150 Sedan +$300
Additional Relays?
*Please contact us before placing your order*
