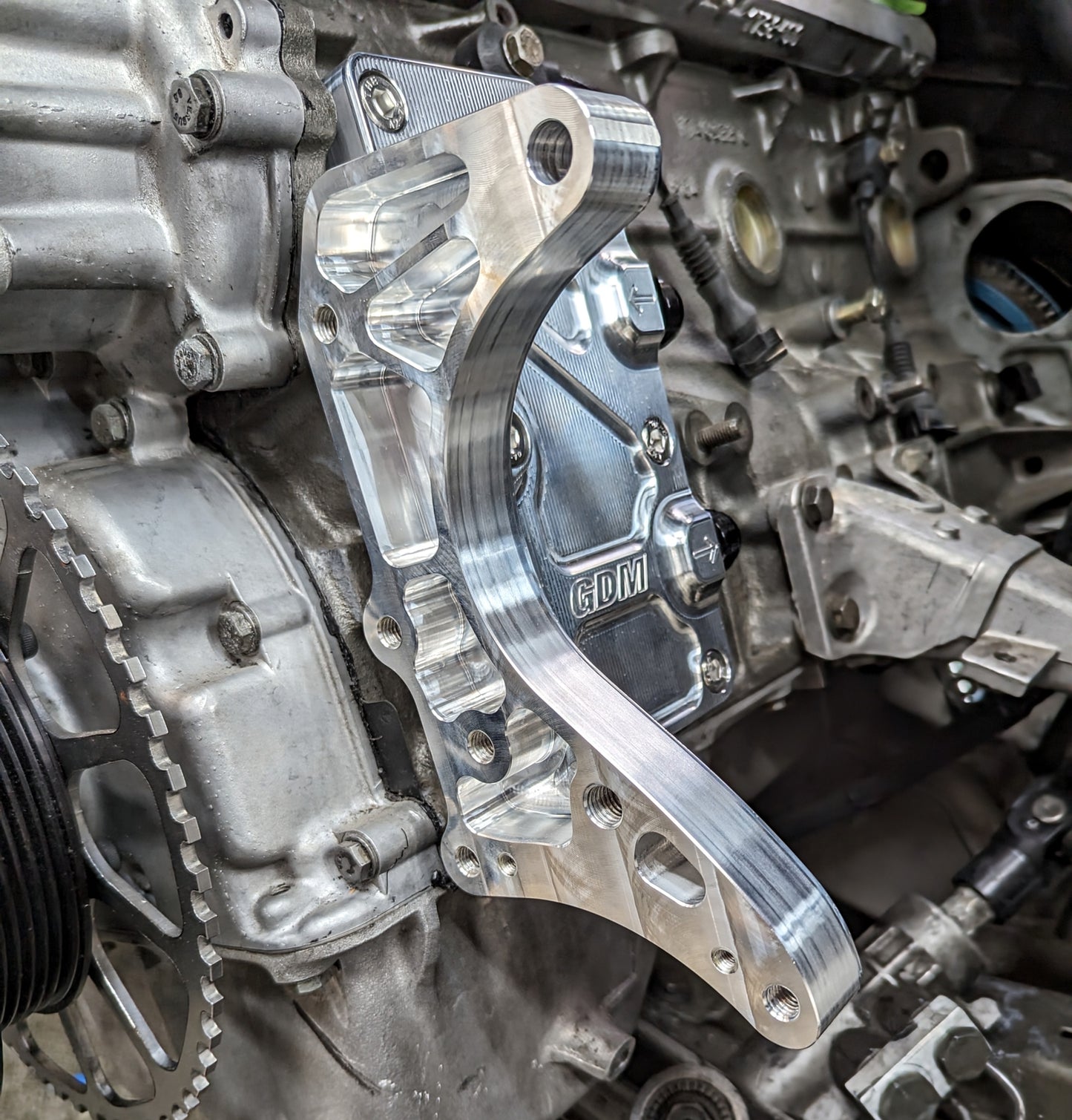

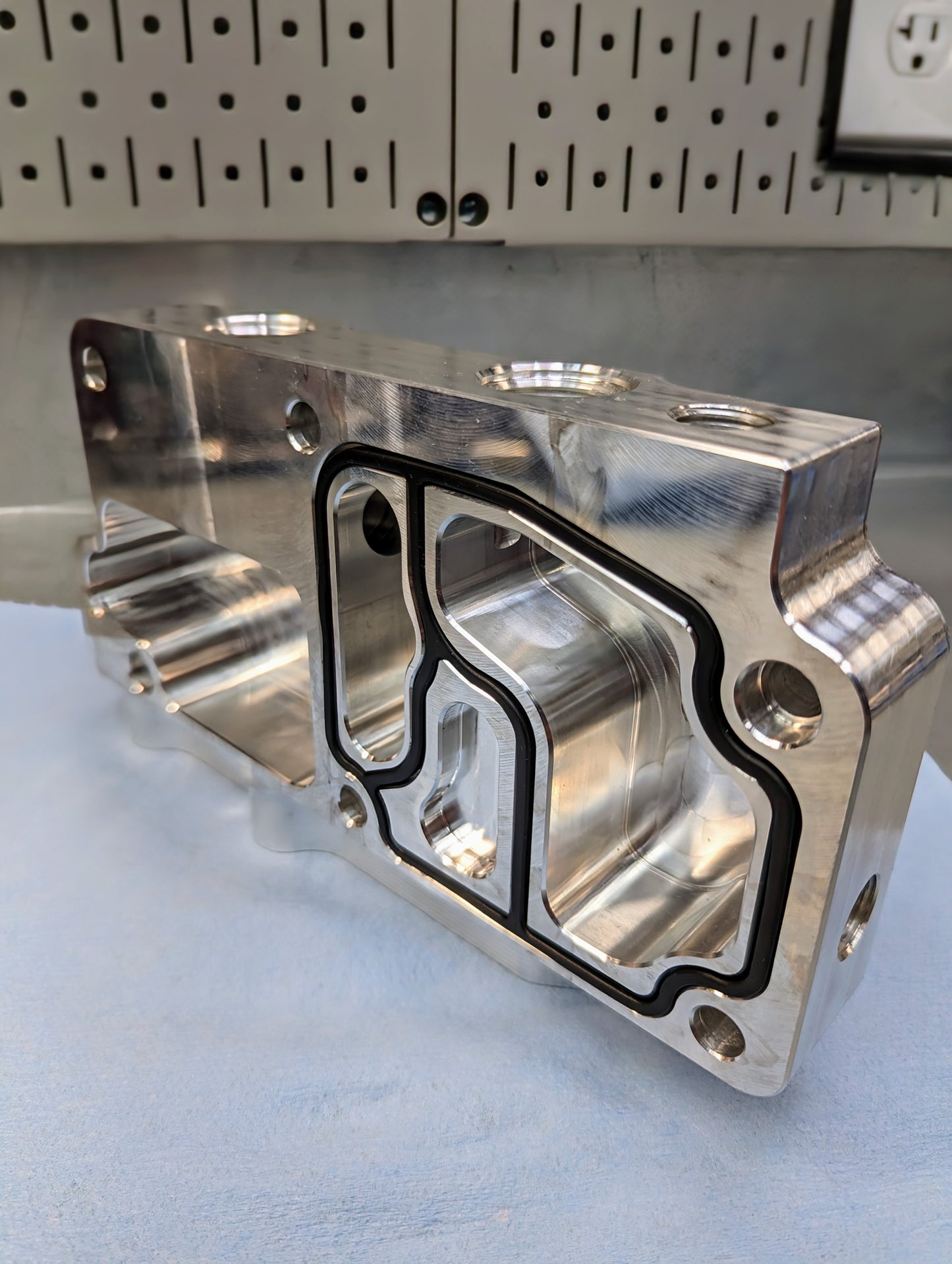

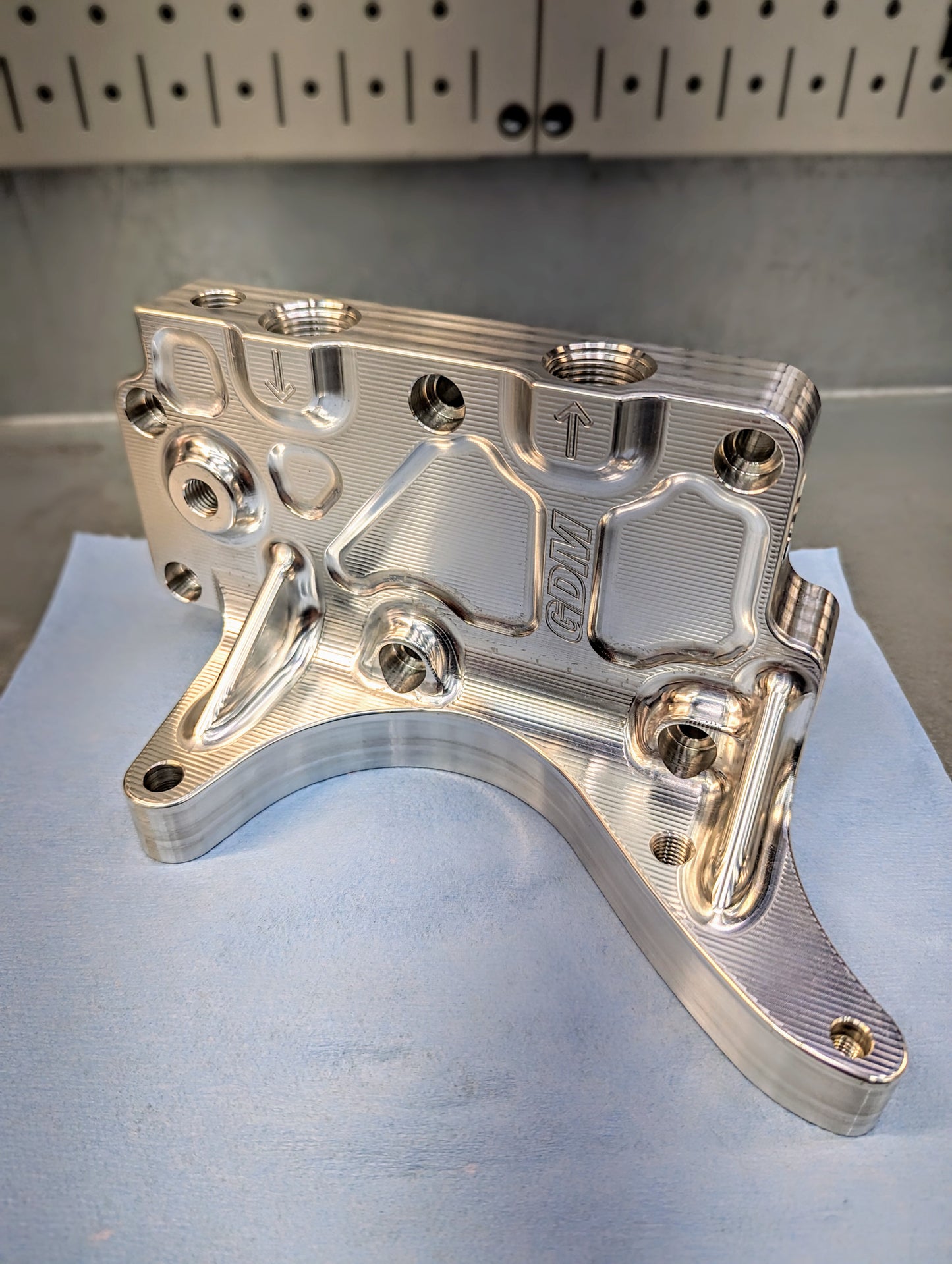

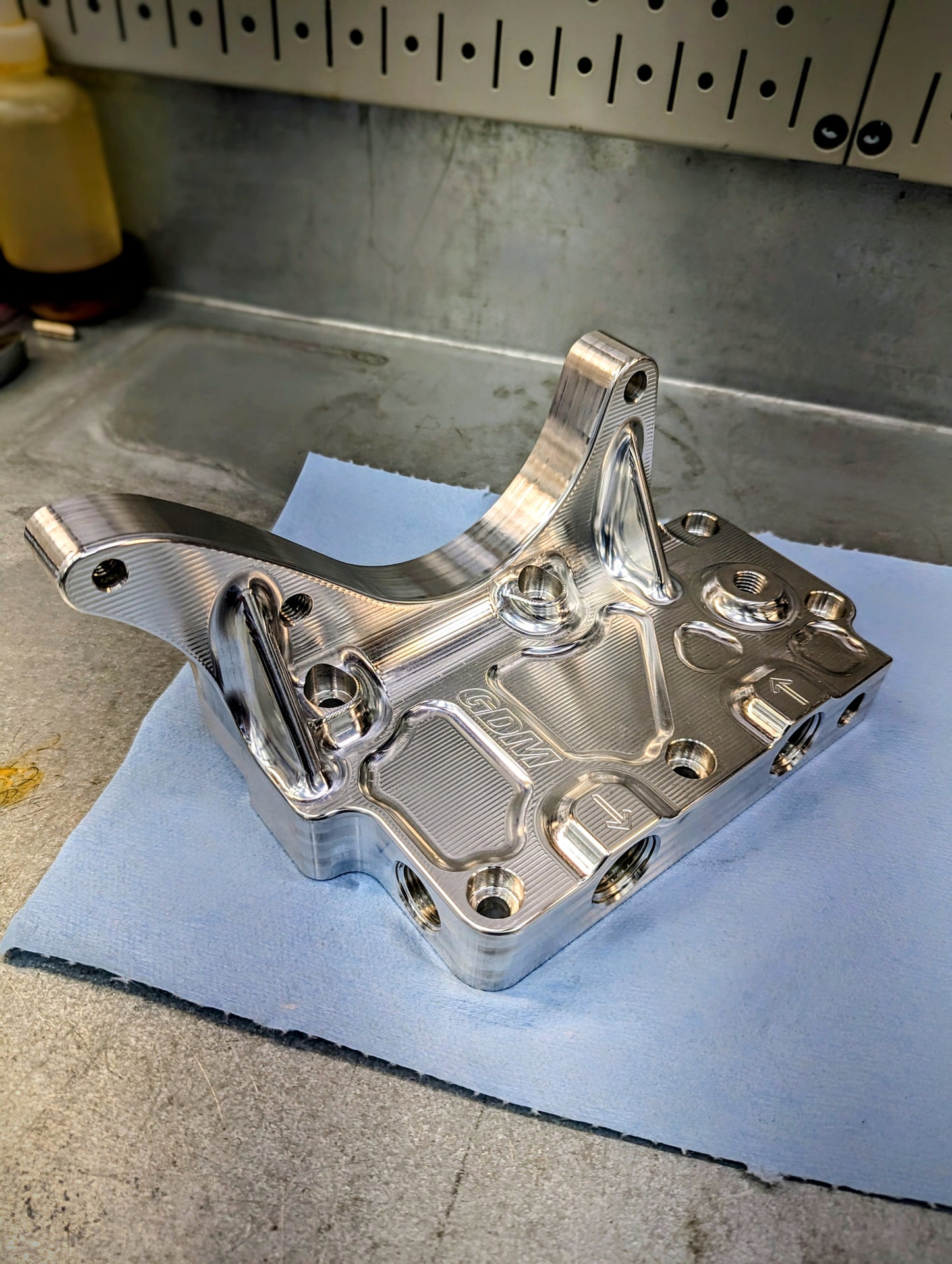

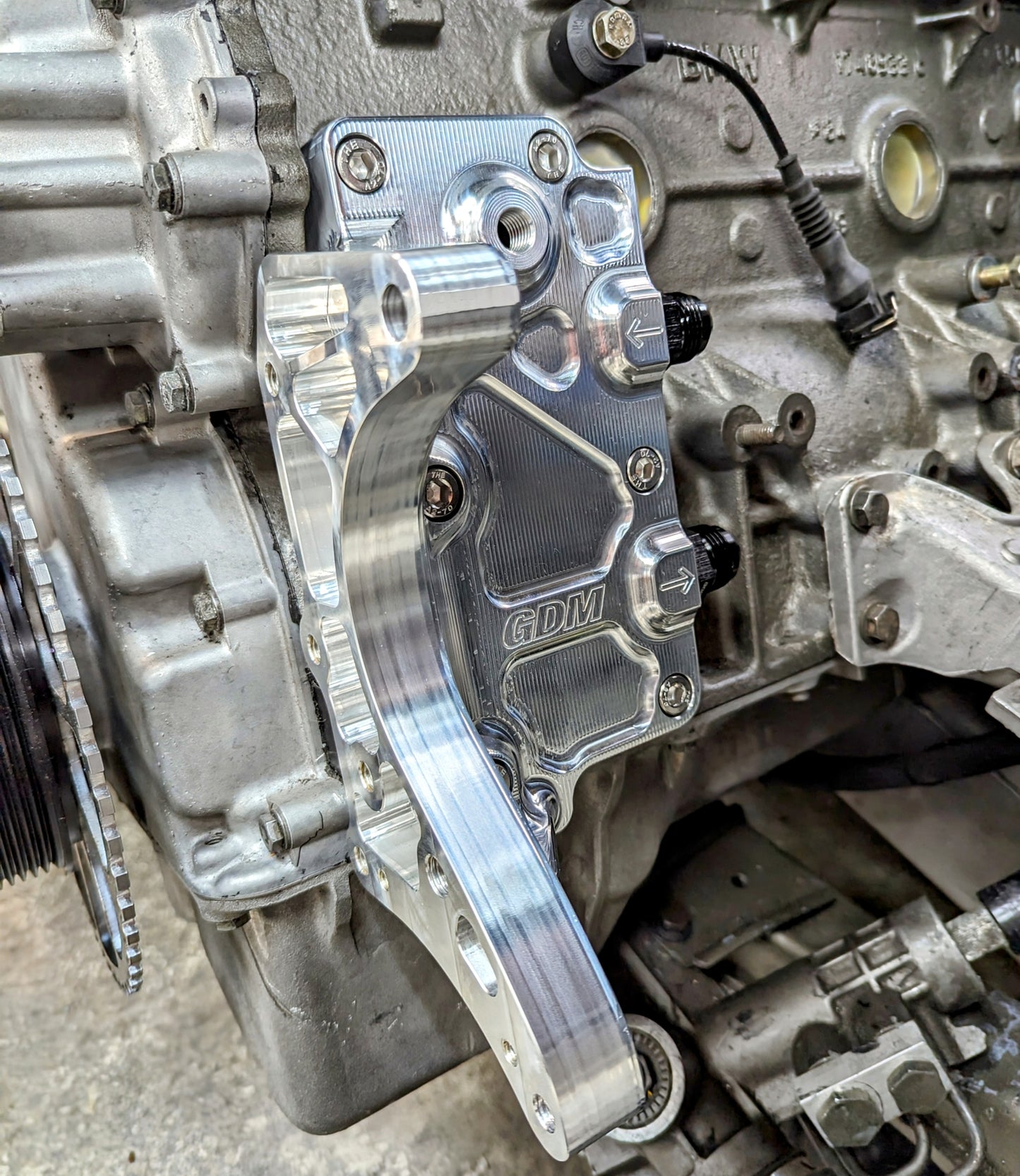

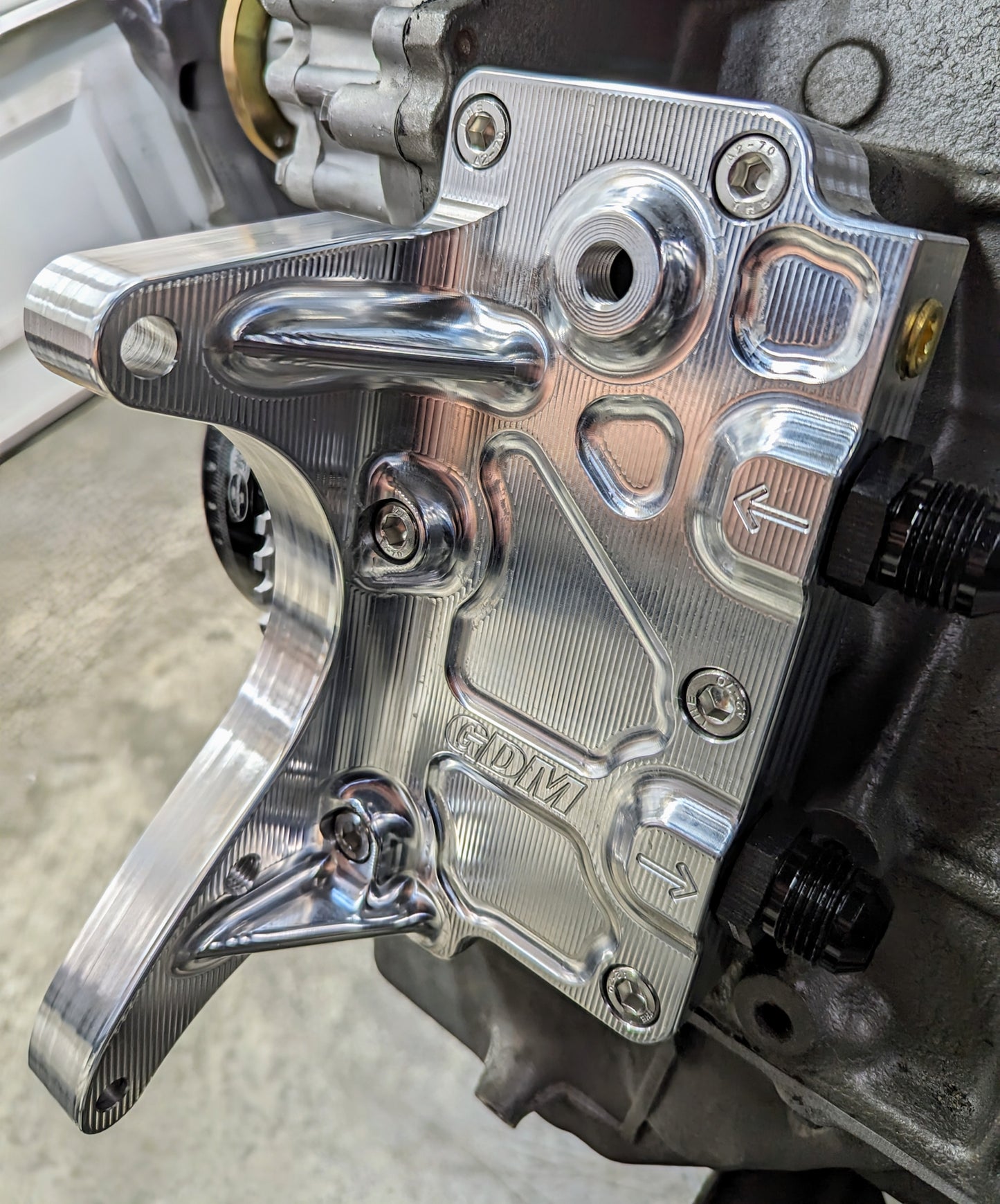

Remote Oil Filter Housing for use in racing applications and where forward-facing intake manifolds may result in clearance issues with the factory oil filter housing (such as our billet aluminum intake manifold).
-Made from 6061 billet aluminum.
-10AN ORB supply and return outlets
-(2) 1/4" brass NPT threaded ports on top and side of the return cavity,
-(1) M12x1.5 threaded port on the face of the return cavity
-(1) 8AN ORB threaded port on the bottom of the supply cavity
-Mounting holes for OEM hydraulic belt tensioner
-Retains factory power steering pump and alternator mounting points
What comes with the kit:
-7075 billet aluminum RRD/GDM racing oil filter housing

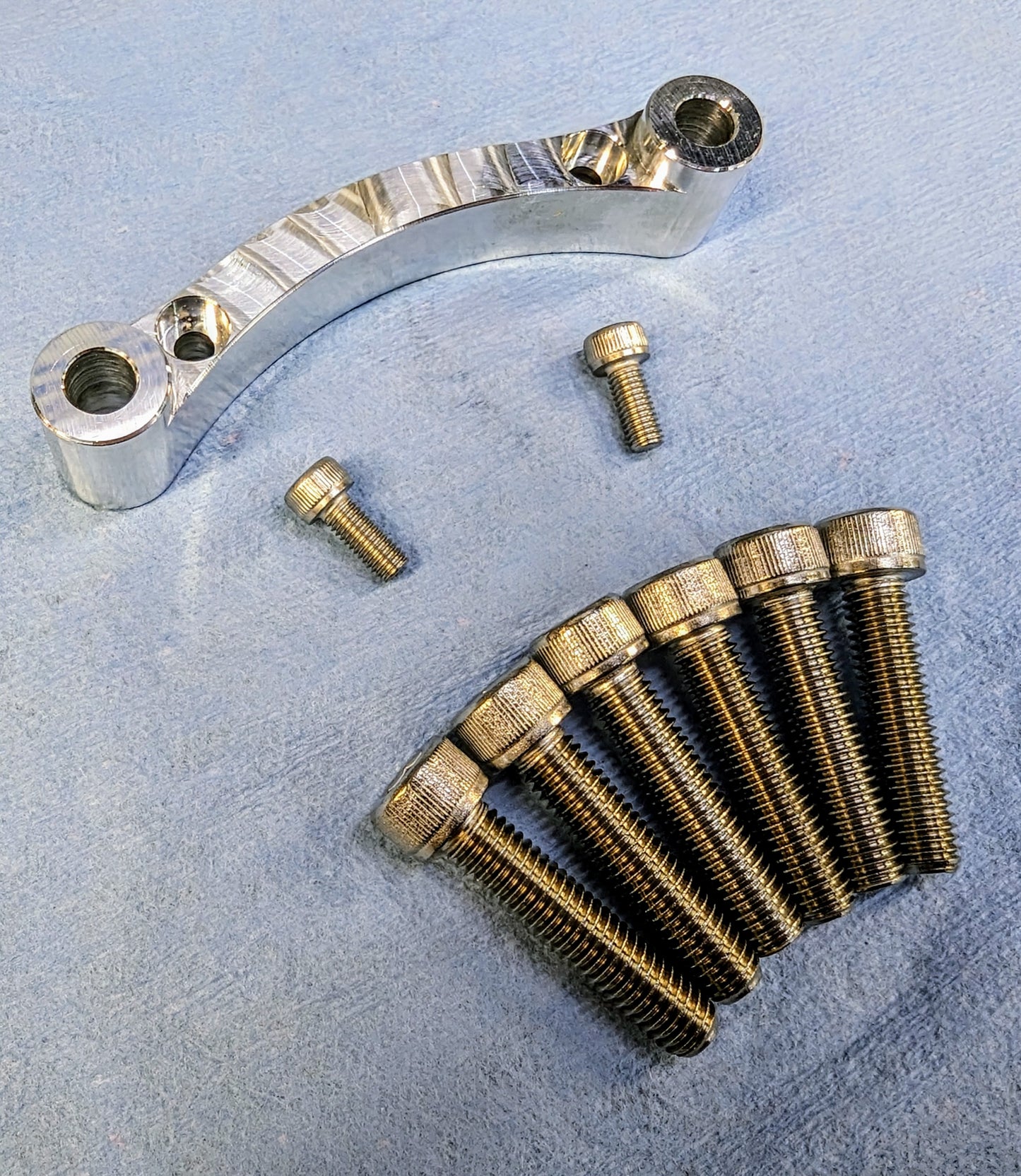

-Mounting hardware
-(2) 10AN ORB x 10AN male flare fittings
-(1) 8AN ORB plug fittings
-(2) 1/4" NPT brass plugs fitting
Pair with the following to make a complete kit (see our add-on kit option)
-Wix Filter Corp. 51060R Racing Oil Filter
-Derale 35729 Premium Series Remote Filter Mount, Black
-New hydraulic belt tensioner
-Vibrant 10AN SS braided hose
-(1) Setrab 6-Series 50-640-7612 racing oil cooler
-(2) Setrab M22 x 10AN male flare (straight) fittings 22-M22AN10-SE
-(2) Vibrant 10AN straight hose end fittings
-(4) Vibrant 10AN 90 hose end fittings
-(3) Vibrant 10AN straight hose end fittings
-(1) 20' Vibrant PTFE Lined Stainless Steel Braided Flex Hose
Please allow up to two weeks for shipping
